8 Series Track Mini Skid Steer

8 Series Track Mini Skid Steer

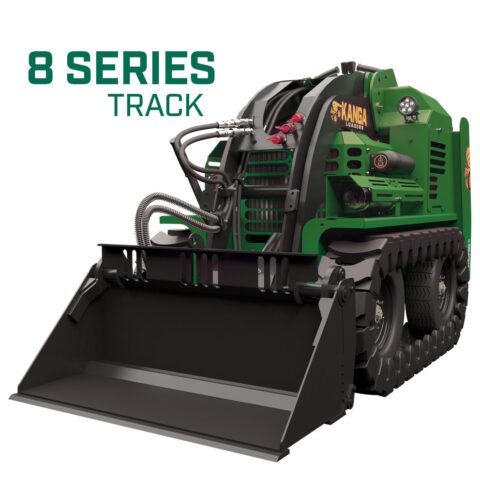

The 8 Series DT835 tracked loader is the most powerful mini skid steer on the market. Made to be operated in the harshest of conditions, it comes fitted with a powerful Kubota diesel engine, a heavy duty two-stage 5″ Donaldson air cleaner, and is fitted standard with tracks for increased stability on uneven surfaces. A large operator platform allows for a wider stance, for improved safety and fatigue reduction, whilst a safety cell ensures the operator is enclosed within the operating platform, with side bump protection to provide additional support on rough terrain.

Kanga’s DT835 diesel loader has been designed with features to offer you an edge over smaller loaders on the market, with an increased lift capacity and longer reach. With many aftermarket options to consider, our range of 8 Series loaders will help increase jobsite productivity, and give you a leading edge within your industry.

Unsure what Mini Loader suits you? See the article below to compare Wheeled to Tracked Loaders.
Wheel or Tracked?

Click here to download the brochure

FINANCEDEMO





Categories: ,

Specifications

LOADER MODEL DT835 (Track)
ENGINE Kubota V1505 Diesel
POWER RATING* 25kW
TRAVEL SPEED – DEFAULT MODE (FAST MODE) 5.4km/h (9.3km/h)
SYSTEM PRESSURE 220bar
FUEL CAPACITY 50L
COOLING Water Cooled
OVERALL WIDTH 1046mm
MAXIMUM OPERATING HEIGHT WITH BUCKET 2597mm
MAXIMUM BUCKET ROLL-BACK 40°
GROUND CLEARANCE 195mm
TIPPING LOAD** 604kg
RATED OPERATING CAPACITY (ROC)** 272kg
MACHINE WARRANTY 1000hrs or 2yr Arm Tilt Assembly / 5yr Chasis Structure / 1yr Other Components
ENGINE WARRANTY 2yrs

(*)Power Rating is the net power of the production engine, only as measured in accordance with SAE J1349 at 3000 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary, depending on numerous factors. These factors can include engine operation in the application, environmental conditions, and other variables.
(**)Tipping Load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1, though the values shown here need to be adjusted for specific attachments. Refer to the section of the Operator’s Manual “Practice Safety at All Times” for Tipping Load and ROC values, for the range of Kanga bucket and fork attachments. Note that ROC is 50% of the Tipping Load for wheel loaders, and 45% for Kanga “over tyre track” loaders.

Enquire

  • This field is for validation purposes and should be left unchanged.

KANGA KEY FEATURES

No Overhung Load, Engineered Design

All machinery needs engineering strategies to place the least possible load and stress on its components. Not all skid steer loaders are engineered the same. Kanga Loaders are engineered to perform and last. Other manufacturers still mount their wheel motors by bolting them through the sheet metal of the chassis without supporting the wheel motor in a manner that will last the test of time.

MORE INFO

Soft Touch Controls

The Kanga designed Soft Touch Control is the softest and most ergonomically friendly control system in the market

Superior operator ergonomics – Raised controls to reduce operator reach and fatigue
Superior Safety – Most responsive, stable and controlled steering
True two-hand operation allows quick proficiency
Hydraulic Design – Allows minimal training to get the operator to maximum efficiency for attachments.

Kanga Loaders soft touch controls

The Wheel Story

Never misunderstand the importance of wheel/Tyre combinations on earth moving equipment. Often this critical point is overlooked by the prospective buyer/operator. Kanga has addressed the critical importance of wheels and tyres on earth moving machinery.

MORE INFO

DINGO MINI DIGGER

  BEST QUALITY MINILOADER

Unmatched Quality and Support

Each Kanga is designed and manufactured for durability, reliability, productivity, less environmental impact and most importantly a long life! Kanga also maintains an extensive inventory of spare parts that supports our current product range as well as some legacy parts, which are up to 30 years old. With over 5,000 parts on the shelf you can be assured fast acccess to spare parts keeping you on the job!

Ground Clearance

Clear obstacles in uneven terrain, such as gutters, mud, and foreign objects. The greater angle of departure allows easy access on all ground contours and minimizes operators exposure to hazards. Generous bucket rollback coupled with high ground clearance provides optimum stability and allows easy filling and safe transportation without spillage due to the lower centre of gravity.

 Kanga loaders strability

 larger operators platform

Larger Operator Platform

The larger operators platform has been ergonomically designed so that the operator can maintain a wider, neutral stance which improves safety and fatigue reduction. The operator is enclosed within the operating platform. Bump protection bars on tanks also provides additional support.

Customised Branding

Whether you need to adhere to corporate branding guidelines or simply want a “one-of a kind” Kanga mini loader, our custom paint option is affordable and will have everyone turning their heads. Show off your favourite footy team or sports car, our specialised paint team and graphic designers are happy to work with you.

*Colours will be limited to the AkzoNoble Intepron spec range. Click Link for Colour Range.

  JIMS DIGGERS

mini loader bucket

Self-levelling

Kanga’s bucket ensures safe, fast, easy operation without the danger of load spillage over the operator. The self-levelling feature also offers superior control allowing the operator to fill the bucket to it’s maximum capacity – making it the only mini Loader in today’s market with this feature.
KANGA MINI DIGGER DINGO VIDEO

Kanga Can

Regardless of the job at hand, Kanga Can! Our highly versatile piece of machinery takes on a wide variety of tasks, turning hard work into easy business. With an artisan approach to manufacturing, Kanga can be highly responsive and create a tailored package to suit each businesses needs in this diverse market.

POWER IMAGE

MINI DIGGER DINGO

Best in Class Ergonomics

The larger operators platform has been ergonomically designed so that the operator can maintain a wider, neutral stance which improves safety and fatigue reduction. The operator is enclosed within the operating platform. Bump protection bars on tanks also provides additional support.

Points to consider

frequency-of-use FREQUENCY OF USE

Generally the frequency of use will determine your power options. Petrol attract the lowest upfront cost, however for those putting big hours on the machine find that the diesel is the cheapest option in the long run. Our sales reps have a handy guide that helps you determine which mini skid steer loader is best for the hours you plan to put on the machine.

HOUR METER

Kanga Loader Access Requirements

access-requirementsACCESS REQUIREMENTS

As residential blocks in inner cities are becoming smaller, private contractors, pool installers, landscapers etc have started to require a narrower machine. The 2 Series track machine is our narrowest in the fleet at only 770mm wide. Even the large 8 Series machine maintains a width of just over 1 metre. Carefully think about what access restrictions you may face before purchasing a mini skid steer.

towing-capacityTOWING CAPACITY

The towing capacity will determine which sized loader and how many attachments you can fit onto the trailer. The most common type of trailer is our 2tonne alloy as it can fit a 6 series loader with trencher, 4in1 bucket, power head and 3 augers comfortably under 2T. For customers with trucks that have a larger towing capacity, the tandem steel is the popular choice.

Kanga Loaders towing capacity

Kanga loaders ground conditions

ground-conditionsGROUND CONDITIONSKANGA MINI DIGGER DINGO VIDEO

One of our most popular questions! Wheels or tracks? Considering wheels does then open up the option to different wheel types for different ground conditions, and are by far the most popular miniloader due to their versatility in different conditions. The Kanga track over wheel system is very popular among wet climates that know they are up for muddy, wet conditions and require a loader that will stick like glue without the burden of ongoing servicing and maintenance/

cost-of-ownershipCOST OF OWNERSHIP

One of the most often overlooked factors is cost of ownership. While upfront costs are one consideration, it is over time and throughout the ownership experience that the hidden costs can often become clear. Operating costs, resale value, support network, resources and technical help, as well as a reliable service centre are all equally as important as the initial transaction. When buying a new mini skid steer, don’t just look at the price tag. Think about how much it will cost in the long term, too.


WHATS THE REAL PRICE
