The 8 Series DW825 diesel loader has been designed with features to offer you an edge over smaller loaders on the market; with increased lift capacity and longer reach – Best suited for hard working attachments and tough site conditions. With a broad range of attachment availability, as well as aftermarket machine options to consider, our range of 8 Series loaders will help increase jobsite productivity, and give you a leading edge within your industry.

With its independent 4-wheel high torque drive system, the DW825 is perfect for any terrain. Coupled with huge 23″ tyres, and a generous 194mm ground clearance, it will take you through the most undulating conditions, offering faster ground speed, and higher puncture resistance. To help cope with harsh conditions, Kanga’s DW825 mini loader also comes fitted with a 23.5hp Kubota diesel engine, and heavy duty two-stage 5″ Donaldson air cleaner.

A large operator platform allows for a wider stance, for improved safety and fatigue reduction, whilst a safety cell ensures the operator is enclosed within the operating platform, with side bump protection to provide additional support on rough terrain.

Specifications

LOADER MODEL	DW825 (Wheel)
ENGINE	Kubota D902 Diesel
POWER RATING*	17.5kW
TRAVEL SPEED	7km/h
SYSTEM PRESSURE	220bar
FUEL CAPACITY	40L
COOLING	Water cooled
OVERALL WIDTH	1046mm
MAXIMUM OPERATING HEIGHT WITH BUCKET	2565mm
MAXIMUM BUCKET ROLL-BACK	41°
GROUND CLEARANCE	194mm
TIPPING LOAD WITH NO BUCKET**	537kg
RATED OPERATING CAPACITY (ROC) WITH NO BUCKET**	267kg
MACHINE WARRANTY	1000hrs / 2yrs
ENGINE WARRANTY	2yrs

(*) Power Rating is the power of the production engine only as measured in accordance with SAE J 1349 at 3600 RPM. Mass production engines vary from this value. Actual power output for the engine installed in the delivered machine may vary depending on numerous factors. These factors can include operation speed of the engine in the application, environmental conditions, and other variables.

(**) Tipping load and Rated Operating Capacity (ROC) have been determined to ISO 14397-1. This is to represent general loader capabilities, and cannot be used for material load without adjusting for the specific attachment.

Points to Consider

FREQUENCY OF USE

ACCESS REQUIREMENTS

TOWING CAPACITY

GROUND CONDITONS

COST OF OWNERSHIP

Gallery

Testimonials

NELLOS KANGA SERVICE

13 years ago I purchased my first Kanga mini loader after seeing an ad in the local newspaper. 7 years later I purchased my second Kanga and between the pair of them they have never let me down. I was always working and clients were very impressed with the setup.

Enquire

Your Name*
First Last
Email*
Phone*
Select your industry*
Company*
Address
Postcode Country
How did you hear about Kanga?*
I am interested in*
Reason for Enquiry*
Phone
This field is for validation purposes and should be left unchanged.

KANGA KEY FEATURES

No Overhung Load, Engineered Design

All machinery needs engineering strategies to place the least possible load and stress on its components. Not all skid steer loaders are engineered the same. Kanga Loaders are engineered to perform and last. Other manufacturers still mount their wheel motors by bolting them through the sheet metal of the chassis without supporting the wheel motor in a manner that will last the test of time.

Soft Touch Controls

The Kanga designed Soft Touch Control is the softest and most ergonomically friendly control system in the market

Superior operator ergonomics – Raised controls to reduce operator reach and fatigue
Superior Safety – Most responsive, stable and controlled steering
True two-hand operation allows quick proficiency
Hydraulic Design – Allows minimal training to get the operator to maximum efficiency for attachments.

Oil Safety Cut-out Switch

The mercury switch sensor detects low oil level and immediately shuts off to protect the engine.

The Wheel Story

Never misunderstand the importance of wheel/Tyre combinations on earth moving equipment. Often this critical point is overlooked by the prospective buyer/operator. Kanga has addressed the critical importance of wheels and tyres on earth moving machinery.

Unmatched Quality and Support

Each Kanga is designed and manufactured for durability, reliability, productivity, less environmental impact and most importantly a long life! Kanga also maintains an extensive inventory of spare parts that supports our current product range as well as some legacy parts, which are up to 30 years old. With over 5,000 parts on the shelf you can be assured fast acccess to spare parts keeping you on the job!

Ground Clearance

Clear obstacles in uneven terrain, such as gutters, mud, and foreign objects. The greater angle of departure allows easy access on all ground contours and minimizes operators exposure to hazards. Generous bucket rollback coupled with high ground clearance provides optimum stability and allows easy filling and safe transportation without spillage due to the lower centre of gravity.

Larger Operator Platform

The larger operators platform has been ergonomically designed so that the operator can maintain a wider, neutral stance which improves safety and fatigue reduction. The operator is enclosed within the operating platform. Bump protection bars on tanks also provides additional support.

Customised Branding

Whether you need to adhere to corporate branding guidelines or simply want a “one-of a kind” Kanga mini loader, our custom paint option is affordable and will have everyone turning their heads. Show off your favourite footy team or sports car, our specialised paint team and graphic designers are happy to work with you.

Self-levelling

Kanga’s bucket ensures safe, fast, easy operation without the danger of load spillage over the operator. The self-levelling feature also offers superior control allowing the operator to fill the bucket to it’s maximum capacity – making it the only mini Loader in today’s market with this feature.

Kanga Can

Regardless of the job at hand, Kanga Can! Our highly versatile piece of machinery takes on a wide variety of tasks, turning hard work into easy business. With an artisan approach to manufacturing, Kanga can be highly responsive and create a tailored package to suit each businesses needs in this diverse market.

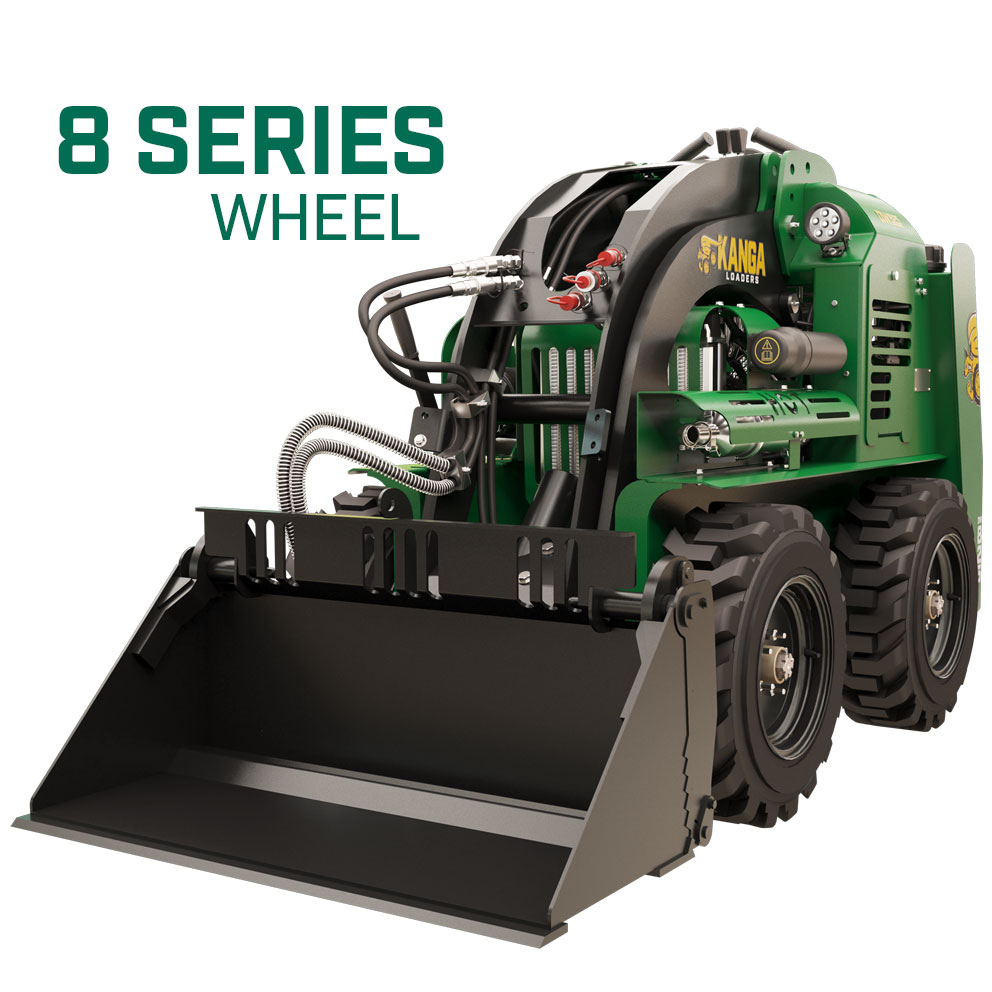

8 Series Wheel Mini Loader
